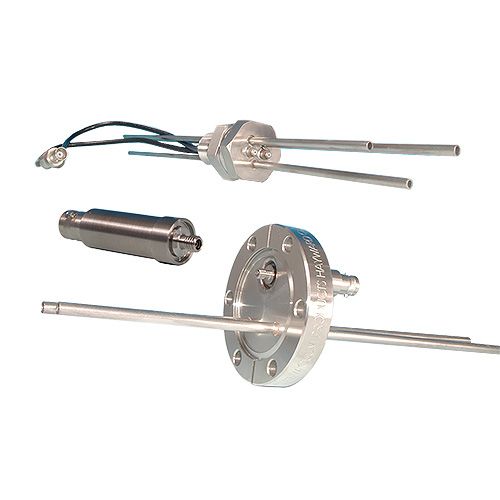

BNC Coaxial Feedthrough, MICRO, 1 Pin, 400C, 1.33" CF (DN16CF) Conflat Flange

Part Number / SKU
9292194
$406.35
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              500V DC maximum

Current                                               1 Amps per pin

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 400°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 400°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

BNC Coaxial Feedthrough, MICRO, 1 Pin, 400C, 1.33" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.25
Vacuum Series Ultra High Vacuum (UHV)
Voltage 500
Conductor Material Stainless Steel
Connector Type Coaxial Microdot
Current 1
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Mounting Style Conflat Flange (CF)
