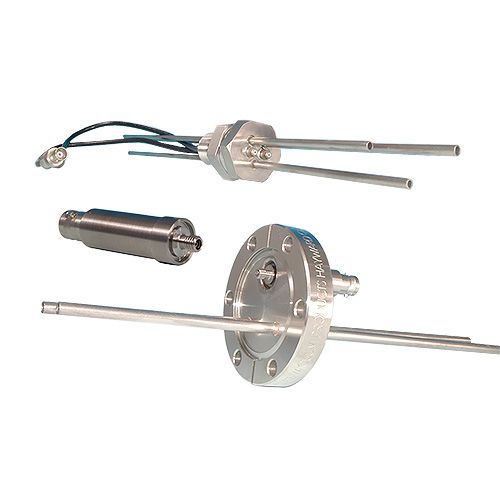

BNC Coaxial Feedthrough, MICRO, 1 Pin, 400C, 2.75" CF (DN40CF) Conflat Flange

Part Number / SKU
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              500V DC maximum

Current                                               1 Amps per pin

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 400°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 400°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

BNC Coaxial Feedthrough, MICRO, 1 Pin, 400C, 2.75" Conflat Flange

More Information


Weight (lb) 1.50
Vacuum Series Ultra High Vacuum (UHV)
Voltage 500
Conductor Material Stainless Steel
Connector Type Coaxial Microdot
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Number of Pins 1
Mounting Style Conflat Flange (CF)
