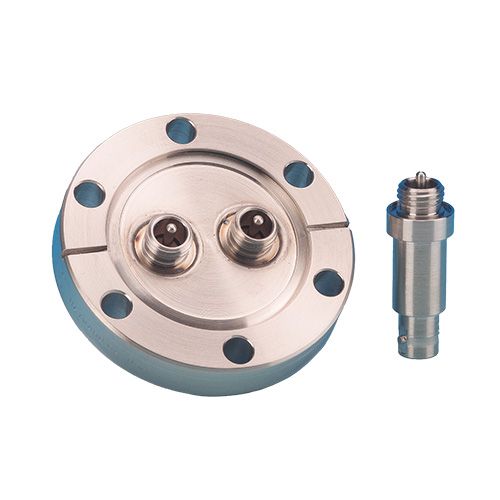

9292202, MHV Coaxial Feedthrough, A 12, 2-Pin, 2.75" CF (DN40CF) Conflat Flange
Part Number / SKU
9292202
$530.25
Availability:
3 Weeks
Specifications
Voltage 500V DC maximum
Current 3 Amps per pin
Impedance Rating Non constant
Temperature Rating
Conflat (CF) -200°C to 400°C
Weldable -200°C to 400°C
Air-side connector -65°C to 165°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
MHV Coaxial Feedthrough, A 12, 2 Pins, 2.75" Conflat Flange
More Information
Specifications
| Weight (lb) | 1.50 |
| Vacuum Series | Ultra High Vacuum (UHV) |
| Voltage | 500 |
| Conductor Material | Stainless Steel |
| Connector Type | Coaxial BNC |
| Current | 3 |
| DC(kV) Air | 500 |
| DC(kV) Vacuum | 500 |
| Feedthrough Type | Coaxial |
| Number of Pins | 2 |
