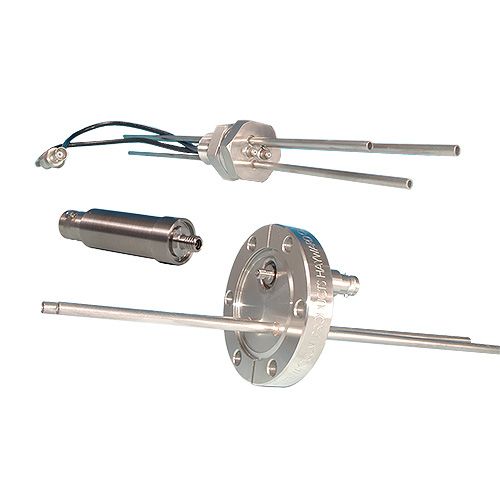

BNC Coaxial Feedthrough, MICRO, 1-Pin, 2 TUBE 150C, 1.00" (25.4mm) BP Bolt Mnt

Part Number / SKU
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              500V DC maximum

Current                                               1 Amps per pin

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 400°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 400°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below

BNC Coaxial Feedthrough, MICRO, 1 Pin, 2 TUBE 150C

More Information


Weight (lb) 1.87
Vacuum Series High Vacuum (HV)
Voltage 500
Conductor Material Stainless Steel
Connector Type Coaxial Microdot
Current 1
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Mounting Style Base Plate Bolt (BP)
