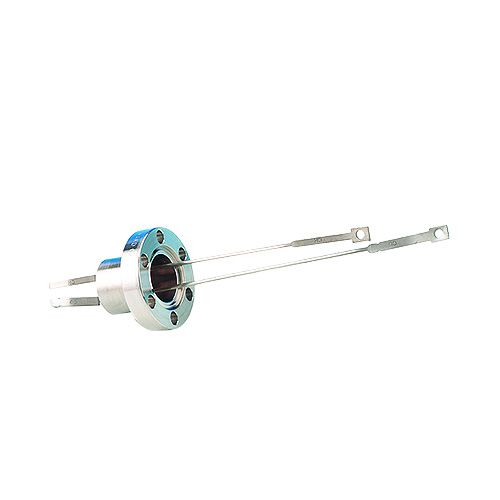

9312000, Thermocouple Feedthrough, Type C, 1 Pair, Miniature Connector, 1.33" CF (DN16CF) Conflat Flange

Part Number / SKU
9312000
$183.00 Special Price $146.40
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              mV

Current                                               mA

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 400°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Thermocouple Feedthrough, Type C, 1 Pair, Miniature Connector, 1.33" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.25
Vacuum Series Ultra High Vacuum (UHV)
Feedthrough Type Thermocouple
Mounting Style Conflat Flange (CF)
