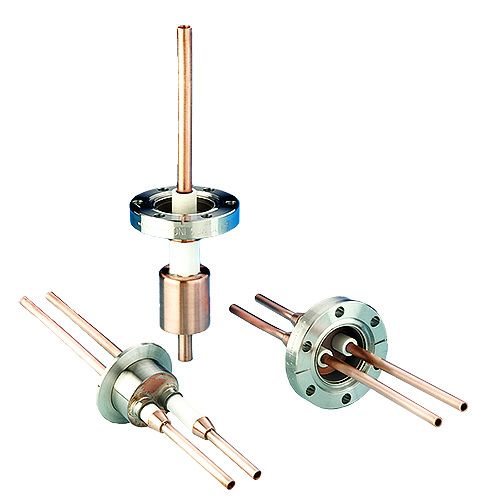

RF Power Feedthrough, 20kW 13.5MHz 2 H2O, 2.75" CF (DN40CF) Conflat Flange

Part Number / SKU
9512010
$859.00
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              10,000V DC maximum

Current                                              20kW

kHz                                                    13.56

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 300°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

RF Power Introduction





Specifications

Voltage                                              10,000V DC maximum

Current                                              20kW

kHz                                                    13.56

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 300°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Features

1 and 2 tube configurations

High voltage

High power

2 different conductor materials available

In-vacuum accessories available

Standard vacuum mounting styles

Custom feedthrough configurations available upon request

More Information

Specifications

Specifications
Weight (lb) 1.50
Vacuum Series Ultra High Vacuum (UHV)
Voltage 10000
Conductor Material Copper
Connector Type Power
DC(kV) Air 10
DC(kV) Vacuum 10
Feedthrough Type RF Power
Frequency 13.56 MHZ
Number of Tubes 2
Power 20 kW
Mounting Style Conflat Flange (CF)
