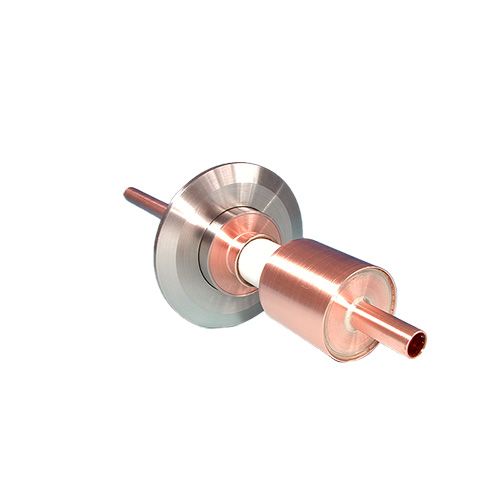

RF Power Feedthrough, 20kW 13.5MHz 2 H2O, K150 (NW40) Kwik-Flange

Part Number / SKU
9513010
$795.00
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              10,000V DC maximum

Current                                              20kW

kHz                                                    13.56

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 300°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Liquid Feedthrough Introduction

Fluid or liquid feedthroughs are designed for the transmission of gasses or coolants into high and ultra-high vacuum environments.  They are constructed from 300 series stainless steel and available with single and dual tube configurations.  All feedthrough versions are fitted with ¼” (6.3mm) tubes and are designed to be terminated with industry standard tube fittings, including Swagelok® and VCR® brand fittings.

The liquid product line is divided into two main categories, general service, and cryogenic service.

General service feedthroughs are .035” single wall tubing construction and designed for the transmission of water as a cooling medium.

Cryogenic service fluid feedthroughs are designed for transmission of liquid nitrogen as the cooling medium.  Because of the extreme thermal gradients encountered with liquid nitrogen, these feedthroughs are constructed with dual and coaxial tube geometries.

Four vacuum mount styles are available for all versions of liquid feedthroughs.  Including Conflat (CF), Kwik-Flange (KF), ISO KF, Baseplate bolts (BP) mount.

Specifications

Voltage                                              10,000V DC maximum

Current                                              20kW

kHz                                                    13.56

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 300°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C



Features

1 and 2 tube configurations

High voltage

High power

2 different conductor materials available

In-vacuum accessories available

Standard vacuum mounting styles

Custom feedthrough configurations available upon request

More Information

Specifications

Specifications
Weight (lb) 1.00
Vacuum Series High Vacuum (HV)
Voltage 10000
Conductor Material Copper
Connector Type Power
DC(kV) Air 10
DC(kV) Vacuum 10
Feedthrough Type RF Power
Frequency 13.56 MHZ
Nominal Tube Size 1/4
Number of Tubes 2
Power 20 kW
Mounting Style Kwik Flange (KF)
