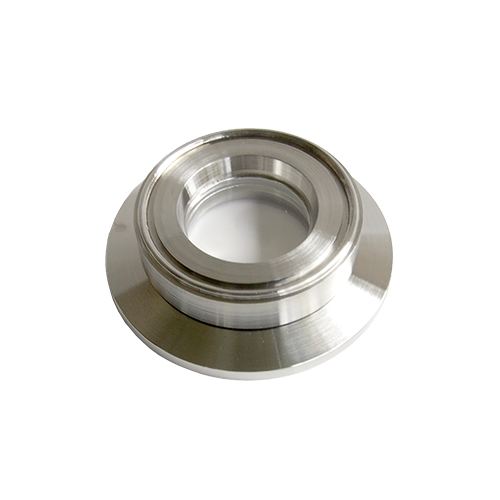

Extended Range Viewport (ERV), Crystal Quartz (SiO2), 1.0inch (25.4mm) Lens, K150 KF (DN40 KF) Kwik Flange
Specifications
Transmission Range
See Extended UV/IR Range Transmission Curve Charts
Optional AR Coatings offered
Temperature Rating
Weldable & Conflat (CF) to 200°C
ISO & Kwik-flange (KF) to 150°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
VacOptix® seal technology has been developed for service in such demanding environments as corrosive chemical, cryogenic and ultra-high vacuum. Only non-magnetic, low vapor pressure materials such as 304 stainless hardware and aluminum gaskets are employed to seal all available window materials.
Plane parallel windows are offered without anti-reflective coating. Plano convex, plano concave and anti-reflective coatings are available upon on request at additional costs.
For special optical, chemical, pressure, cryogenic or vacuum needs please call technical sales
Specifications
Transmission Range
See Extended UV/IR Range Transmission Curve Charts
Optional AR Coatings offered
Temperature Rating
Weldable & Conflat (CF) to 200°C
ISO & Kwik-flange (KF) to 150°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
More Information
Specifications
Weight (lb) | 0.50 |
Viewport Type | Crystal Quartz (SiO2) |
Mounting Style | Kwik Flange (KF) |
