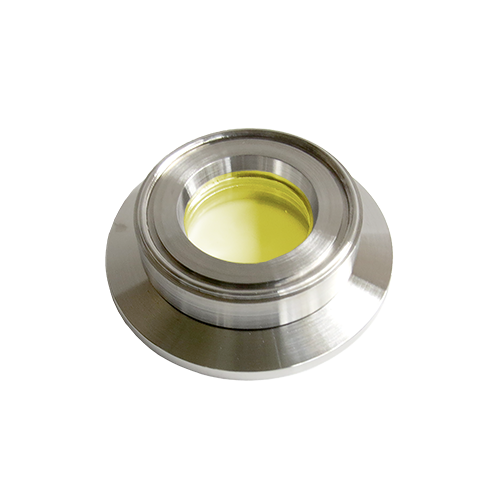

9793884, Extended Range Viewport (ERV), Zinc Selenide (ZnSe), 1.0inch (25.4mm) Lens, K150 KF (DN40KF) Kwik Flange

$615.00
In stock
SKU
9793884

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Specifications

Transmission Range

See Extended UV/IR Range Transmission Curve Charts

Optional AR Coatings offered

Temperature Rating

Weldable & Conflat (CF)              to 200°C

ISO & Kwik-flange (KF)                to 150°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below



More Information

More Information
Weight 0.500000
Mounting Style Kwik Flange (KF)
9793884.STEP (128.86 kB)

VacOptix® seal technology has been developed for service in such demanding environments as corrosive chemical, cryogenic and ultra-high vacuum.  Only non-magnetic, low vapor pressure materials such as 304 stainless hardware and aluminum gaskets are employed to seal all available window materials.

Plane parallel windows are offered without anti-reflective coating.  Plano convex, plano concave and anti-reflective coatings are available upon on request at additional costs.

For special optical, chemical, pressure, cryogenic or vacuum needs please call technical sales

Specifications

Transmission Range

See Extended UV/IR Range Transmission Curve Charts

Optional AR Coatings offered

Temperature Rating

Weldable & Conflat (CF)              to 200°C

ISO & Kwik-flange (KF)                to 150°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
