Half Nipple, DN40CF 70 mm | 2.75" ConFlat Flange, 34.8 mm | 1.50" Tube OD, 304 SS

Name: Half Nipple, DN40CF 70 mm | 2.75" ConFlat Flange, 34.8 mm | 1.50" Tube OD, 304 SS
SKU: 401002
Price: 52.5 USD
Availability: InStock

Part Number / SKU

401002

$52.50

Availability: In Stock

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

401002.SLDASM

Download

401002.SLDDRW

Download


Download

401002_TechnicalSpecs.rtf

401002_A.STEP

401002_A.DWG

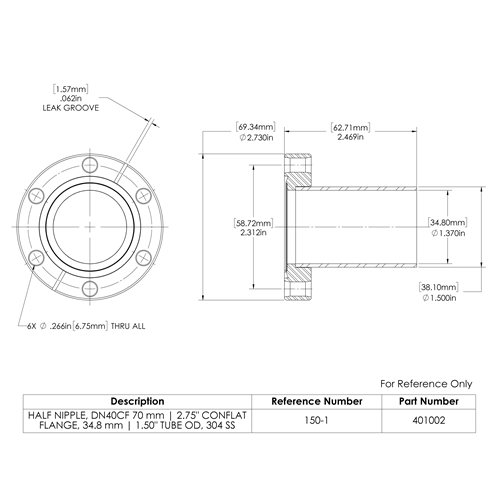

401002_A.PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

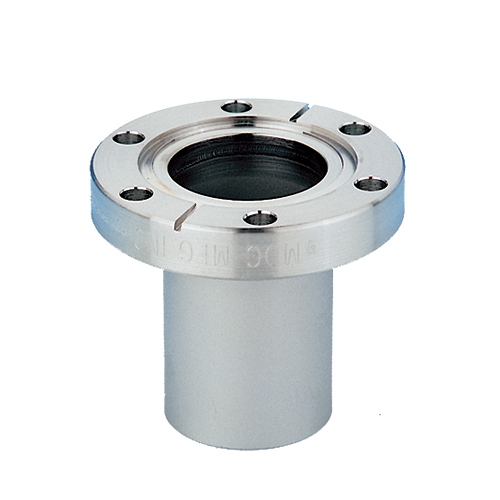

DS Half Nipple, 1.5"

More Information

Specifications

Specifications
Weight (lb)	1.00
Length	2.46
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Reference Number	150-1 \| CST40-T
Temperature Range	-200¬∞C to 450¬∞C
Vacuum Range	1 x 10 -13 Torr \| to below 10-13 mbar
Vacuum Series	Ultra High Vacuum (UHV)
Wall Thickness	0.065
Flange Geometry	Non-Rotatable
Flange Mount	2.75" Del-Seal CF (DN40CF) ConFlat
Flange Size	DN40CF 70mm \| 2.75" (2 3/4") OD
Flange Type	ConFlat CF Flange
Tube Outer Diameter	1.50" (1 1/2") \| 70mm
