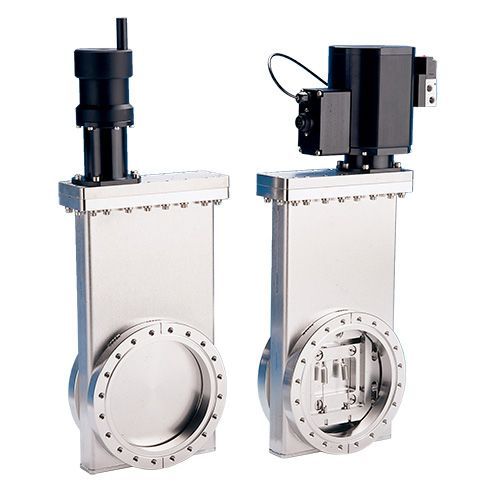

TEST Valve Product

Part Number / SKU
test_valve_product
$1,000.00
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Ultra-high vacuum (UHV) series
  • Circular apertures ports
  • Del-Seal CF ConFlat port flanges
  • Stainless steel construction
  • Electropneumatic actuators for pneumatic operation
  • Patented C-Loc® and Uni-Loc™ locking mechanism
  • 120VAC air control solenoid valve, with 24VDC or 240VAC options available
  • OFE copper metal bonnet seals
  • Welded bellows actuator seal
  • TIG-welded internal body joints
  • Electropolished interior and exterior surfaces
  • Dry film lubricated bearings

Benefits

  • Superior sealing performance for minimal surface erosion
  • Bidirectional / dual direction for non-restricted flow
  • Simple body, compact structure for easier operation
  • Energy-efficient for reduced total ownership cost
  • Wide application range
  • With air control solenoid valve standard option, reduced particulates during pump down and reduced stress on high vacuum pump

Applications

  • Ultra-high vacuum (UHV)
  • Aerospace
  • Industrial
  • Life sciences / bio-medical
  • Research
  • Semiconductor

Vacuum Gate Valves Overview

Custom designed valves are available on request.

More Information

Specifications

Specifications
Reference Number GV-6000M-PTEST
Material 300SS Stainless Steel
Vacuum Series Ultra High Vacuum (UHV)
Port Size 6.00" (6.00 inches) | 152.4mm
Flange Type ConFlat CF Flange
Flange Thread Type UNF
Actuator Pneumatic
Actuator Seal Type Bellows
Material - Body Carriage and Gate 300 Series Stainless Steel SS
Material - Bonnet Gasket Seal Metal
Material - Gate / Poppet Seal FKM / FPM
Material - Actuator Seal Bellows AM3-350SS
Material - Bolts 300 series SS silver plated
Pneumatic Seal Fluorocarbon-based fluoroelastomer (FKM)
Actuator - Air Pressure 70 to 100 psig | 5-7bar
Electropneumatic Actuator - Solenoid Power 120VAC, 50/60Hz, 4W
Electropneumatic Actuator - Power Loss Valve closes
Electropneumatic Actuator - Position Indicators Mechanical, reed, micro switches suitable for 5A 120/240/VAC
Differential Pressure - On the Gate / Closed ≤ 14.7 psi (1 bar)
Differential Pressure - At Opening ≤ 22.5 Torr (30 mbar)
Open / Close Time 2.5s (2.5 seconds)
Temperature - Valve Body ≤ 475°F | 250°C OPEN
Temperature - Pneumatic Actuator ≤ 400°F | 200°C
Temperature - Position Indicator ≤ 175°F | 80°C
Temperature - Solenoid Valve 32°F - 125°F | (0 - 50°C)
Vacuum Range 1x10-11 Torr
Leak Rate 2x10-10 cc/sec of He
Molecular Flow Conductance 600 l/s
Weight (lb) 37.00
