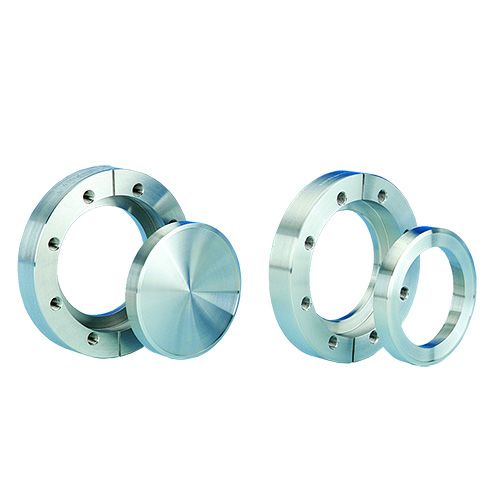

Flange, 4.5" x 2.5" (114mm x 63.8mm) Rotatable, Clearance, 304ss

SKU
100021
$69.30
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
3 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Complies with ISO 3669

  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Viton® elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Specifications

Material

  • Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel and 300ss silver Plated

Fastening

  • Bolt type              Hexagonal or 12-point head

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                  .312-24 UNF or M8

  • Torque                  15 lb-ft or 20 Nm

Vacuum Range                 1x10-13 Torr or below 10-13 mbar

Temperature Range            -2000C to 4500C

Weight                      3lb or 1.4kg maximum

Dimensions                    4.47” OD x 2.51” ID; 113.5mm OD x 66mm ID maximum

Flange, 4.5" x 2.5" (114mm x 63.8mm) Rotatable, Clearance, 304ss

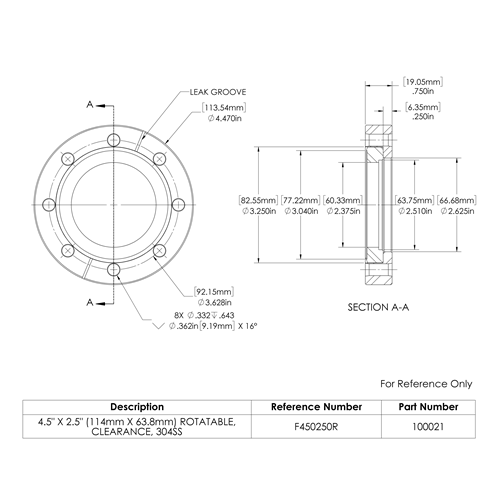

100021_fr_dwg (5.98 kB)
100021_sc_dxf (3.13 kB)
100021.stp (117.15 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN63CF 114mm | 4.5" (4 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 2-1/2 Inch Nominal (2.375)
