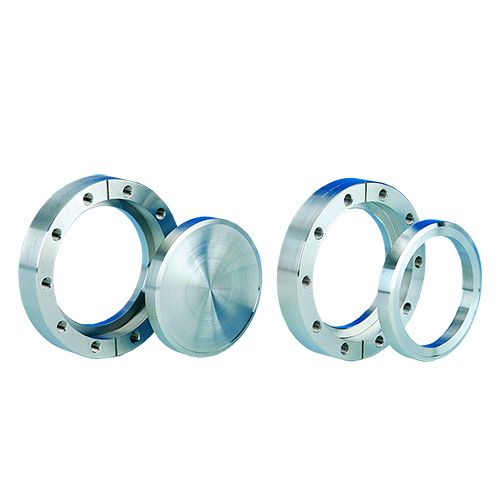

Flange, 4.58", Blank, Rotatable, 304ss

SKU
100022
$85.05
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100022_fr.dwg

100022.stp

100022_sc.dwg

100022_sc.dxf

100022_fr.dxf

Flange, 4.58", Blank, Rotatable, 304ss
100022_fr_dxf (3.00 kB)
100022_sc_dwg (6.83 kB)
100022.stp (126.24 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 10
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN75CF 117mm | 4.625 " (4 5/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
