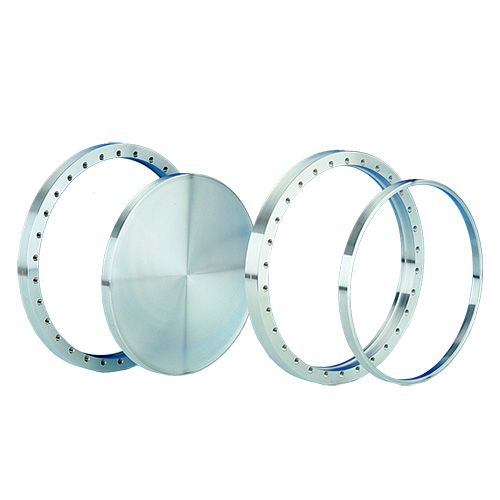

Flange, 14", Blank, Rotatable, 304ss

Part Number / SKU
100037
$1,029.00
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100037.stp

100037_sc.dwg

100037_fr.dwg

100037_sc.dxf

100037_fr.dxf

Flange, 14", Blank, Rotatable, 304ss
100037_fr_dwg (6.73 kB)
100037_sc_dxf (3.06 kB)
100037_fr_dxf (2.78 kB)
100037_sc_dwg (6.82 kB)
100037.stp (282.95 kB)

More Information

Specifications

Specifications
Weight (lb) 46.000000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN295CF 355mm | 14.00"
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
