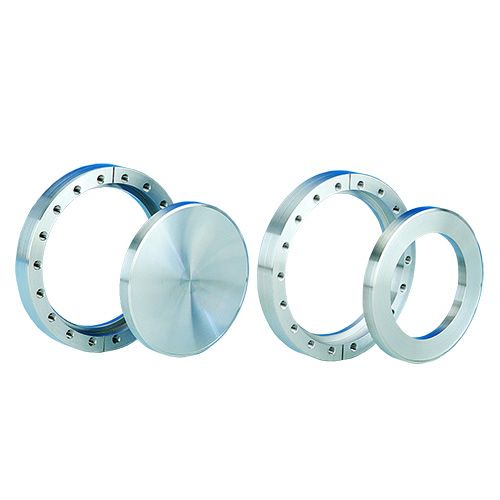

Flange, 6.75", Blank, Rotatable, 304ss

$220.00
SKU
100027
Availability : 6 weeks
This is our estimated shipping timeline.

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100027.stp

100027_sc.dwg

100027_fr.dwg

100027_sc.dxf

100027_fr.dxf

More Information

More Information
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 18
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size 6.75" (6 3/4") | DN125CF 172mm
Flange Type Del-Seal CF ConFlat
100027_fr_dxf (2.55 kB)
100027_sc_dwg (7.12 kB)
100027.stp (188.36 kB)
100027_fr_dwg (6.55 kB)
100027_sc_dxf (3.20 kB)
Flange, 6.75", Blank, Rotatable, 304ss
