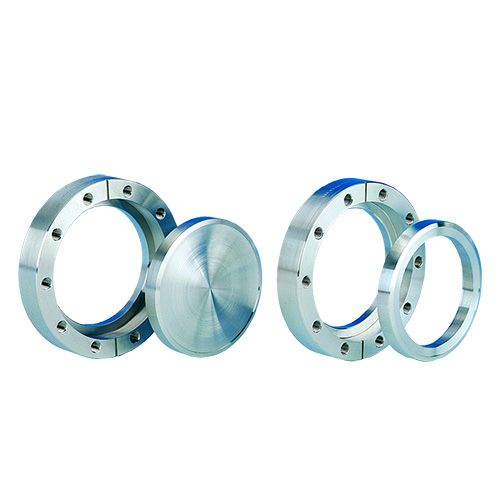

Flange, 4.58" x 2.5"Rotatable, 304ss

Part Number / SKU
100023
$89.25
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100023.stp

100023_sc.dwg

100023_fr.dwg

100023_sc.dxf

100023_fr.dxf

Flange, 4.58" x 2.5"Rotatable, 304ss
100023_fr_dwg (6.10 kB)
100023_sc_dxf (3.02 kB)
100023_fr_dxf (2.35 kB)
100023.stp (134.61 kB)
100023_sc_dwg (6.89 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 10
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN75CF 117mm | 4.625 " (4 5/8") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 63.5mm | 2 1/2 Inch ID Nominal (2.510")
