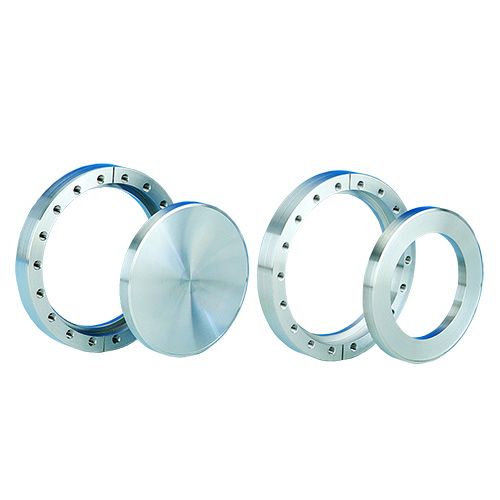

Flange, 6.75 x 4", Rotatable, 304ss

Part Number / SKU
100028
$236.25
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
1 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100028.stp

100028_sc.dwg

100028_fr.dwg

100028_sc.dxf

100028_fr.dxf

Flange, 6.75 x 4", Rotatable, 304ss
100028.stp (196.72 kB)
100028_fr_dxf (2.56 kB)
100028_sc_dwg (7.03 kB)
100028_fr_dwg (6.64 kB)
100028_sc_dxf (3.08 kB)

More Information

Specifications

Specifications
Weight (lb) 8.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 18
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN125CF 172mm | 6.75" (6 3/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 4 Inch Nominal (3.810)
