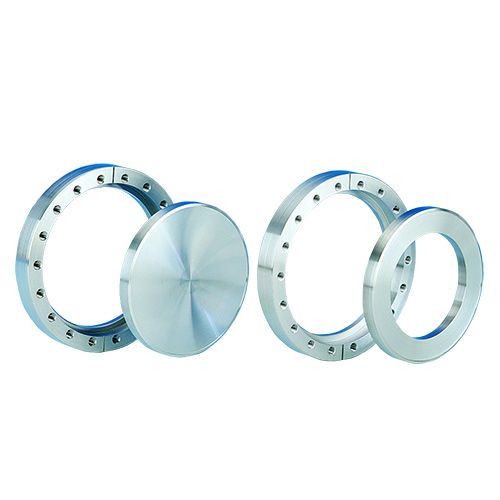

Flange, 6.75" x 5", Rotatable, 304ss

Part Number / SKU
100029
$241.50
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100029.stp

100029_sc.dwg

100029_fr.dwg

100029_sc.dxf

100029_fr.dxf

Flange, 6.75" x 5", Rotatable, 304ss
100029.stp (196.76 kB)
100029_fr_dwg (6.62 kB)
100029_sc_dxf (2.98 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 18
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN125CF 172mm | 6.75" (6 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 127mm | 5 Inch ID Nominal (5.010")
