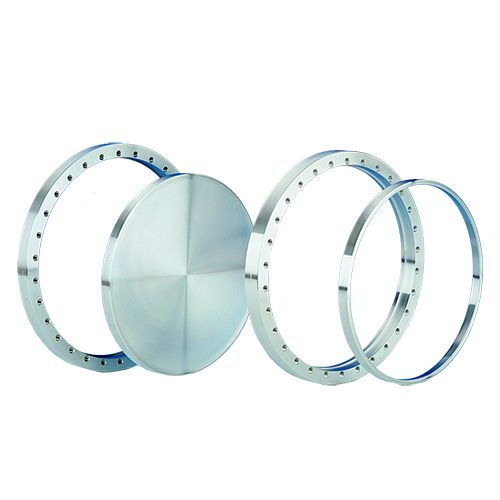

Flange, 14" x 12", Rotatable, 304ss

Part Number / SKU
100038
$966.00
Availability: Backordered

This product is currently on back order (orders are still accepted).

Quantity:
0 Available
Standard Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100038.stp

100038_sc.dwg

100038_fr.dwg

100038_sc.dxf

100038_fr.dxf

Flange, 14" x 12", Rotatable, 304ss

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN295CF 355mm | 14.00" OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 304.8mm | 12 Inch ID Nominal (12.020")
