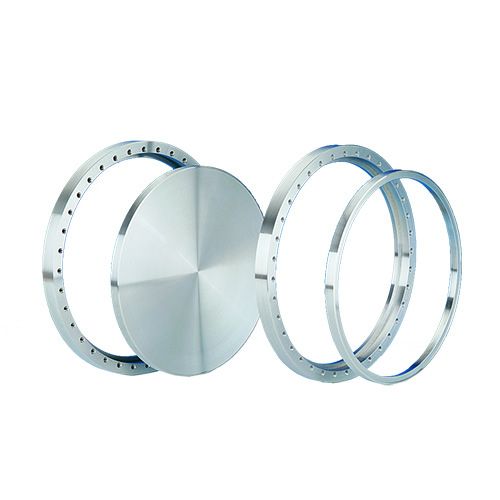

100040, Flange, 16.5" x 14", 419mm, Rotatable, Clearance, Del-Seal CF, 304ss

Part Number / SKU
100040
$2,127.38
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100040.stp

100040_sc.dwg

100040_fr.dwg

100040_sc.dxf

100040_fr.dxf

Flange, 16.5" x 14", Rotatable, 304ss
100040_fr_dxf (2.92 kB)
100040_sc_dwg (6.60 kB)
100040.stp (336.75 kB)
100040_fr_dwg (6.92 kB)
100040_sc_dxf (2.90 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 36
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN350CF 419mm | 16.50" (16 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 14 Inch Nominal (13.750)
