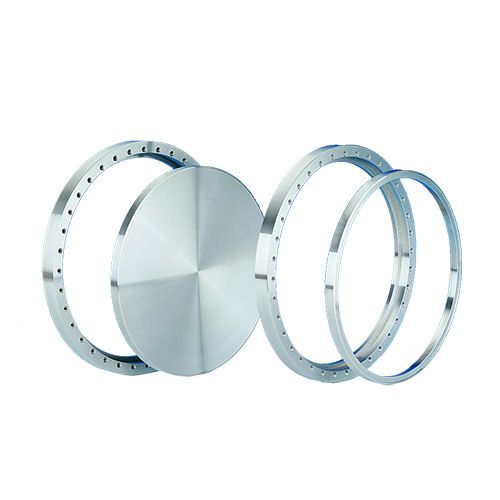

Flange, 16.5" x 14", Rotatable, Tapped, 304ss

Part Number / SKU
120040
$2,390.85
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 16.5" x 14", Rotatable, Tapped, 304ss
120040_sc_dwg (6.57 kB)
120040_sc_dxf (2.91 kB)
120040_fr_dwg (7.28 kB)
120040.stp (493.52 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 36
Thread Size 0.375-24 UNF
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN350CF 419mm | 16.50" (16 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 14 Inch Nominal (13.750)
