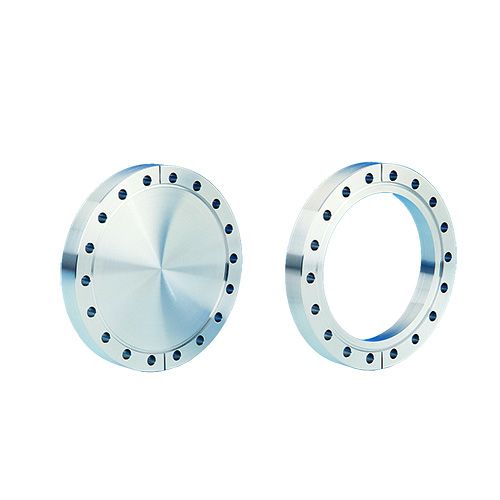

Flange, 6.75" (171.45mm), Blank, 304ss

Part Number / SKU
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 6.75", Blank, 304ss

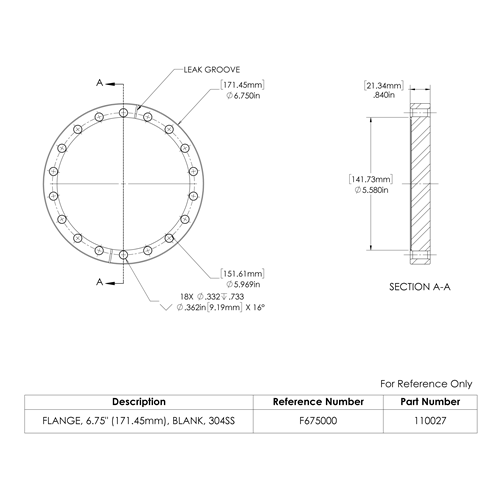

110027_fr_dxf (2.45 kB)
110027_SC_dwg (4.98 kB)
110027.stp (173.55 kB)

More Information


Weight (lb) 8.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 18
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN125CF 172mm | 6.75" (6 3/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
