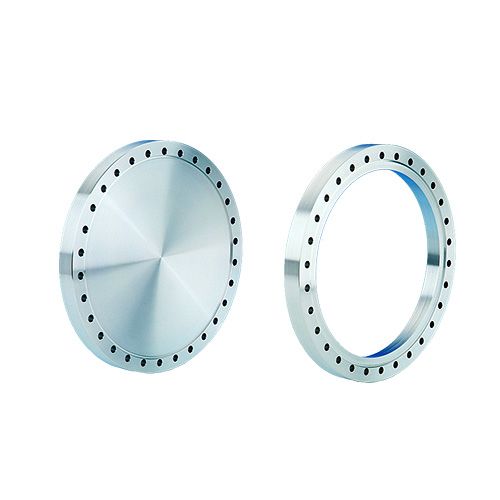

Flange, 13.25" x 10" (336.55mm x 254mm), 304ss

SKU
110035
$708.75
Availability: In Stock
Quantity:
3 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 13.25" x 10", 304ss
110035_FR_dwg (4.64 kB)
110035_sc_dxf (2.90 kB)
110035.stp (276.33 kB)
110035_fr_dxf (2.73 kB)
110035_SC_dwg (4.93 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN275CF 336mm | 13.25" (13 1/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 10 Inch Nominal (9.750)
