Flange, 13.25" x 10", Tapped, 304ss

Part Number / SKU
130035
$725.55
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 13.25" x 10", Tapped, 304ss

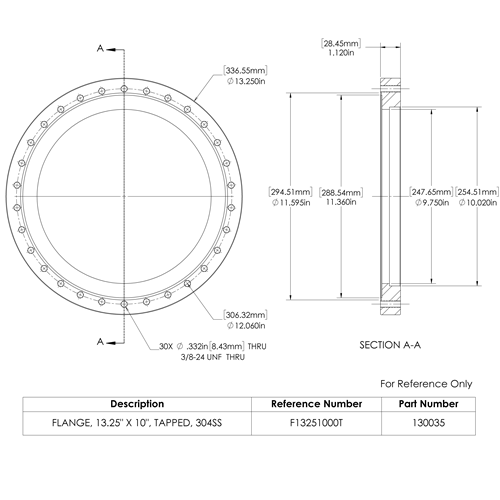

130035_FR_dwg (4.96 kB)
130035_sc_dxf (2.94 kB)
130035.stp (365.39 kB)
130035_SC_dwg (4.97 kB)
130035_fr_dxf (3.01 kB)

More Information

Specifications

Specifications
Weight (lb) 18.000000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Thread Size 0.375-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN275CF 336mm | 13.25" (13 1/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 10 Inch Nominal (9.750)
