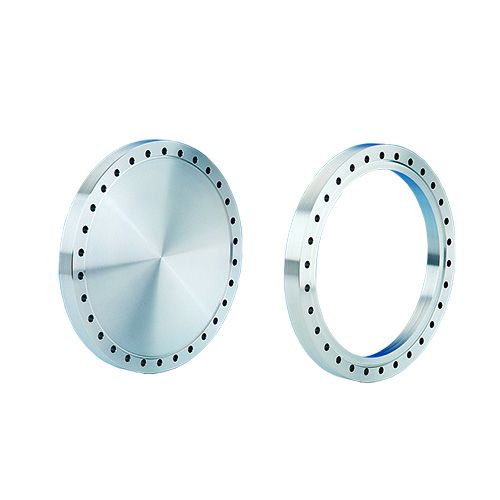

Flange, 12" x 10", Tapped, 304ss

Part Number / SKU
130093
$1,185.19
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

130093_A.STEP Download
130093_A.DWG Download

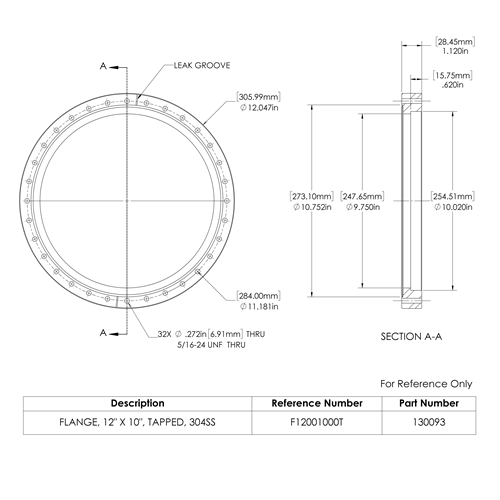

130093_A.PNG Download
130093_TechnicalSpecs.rtf Download
130093_A.PDF Download
130093.SLDPRT Download
130093.SLDDRW Download
Flange, 12" x 10", Tapped, 304ss

More Information

Specifications

Specifications
Weight (lb) 0.50
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 32
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN250CF 304mm | 12.00" OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 254mm | 10 Inch ID Nominal (10.020")
