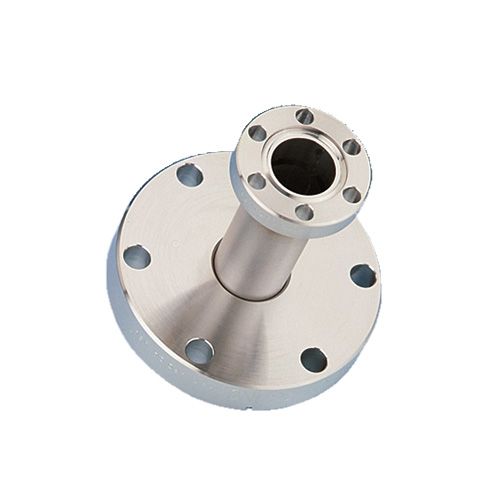

1115035, Nipple Reducer, Straight Tube, DN40CF x DN16CF ConFlat Flanges, 304ss

Part Number / SKU
1115035
$74.55 Special Price $59.64
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Reducers are used for a change in size of flanges within a single method of sealing, such as ConFlat CF to CF. Nipple reducers include a section of tubing between flanges.

  • For ConFlat to ConFlat connections of different size flanges
  • Larger flange is non-rotatable, smaller flange is rotatable
  • Clearance bolt holes
  • Standard matte finish

More Information

Specifications

Specifications
Weight (lb) 1.00
Length 1.97" | 50mm
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Reference Number E-CST40-16
Temperature Range -200°C to 450°C
Vacuum Range 1 x 10 -13 Torr | to below 10 -13 mbar
Vacuum Series Ultra High Vacuum (UHV)
Bolt Hole Type Clearance
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Reducer Flange 1.33 Inch OD Mini (DN16)
