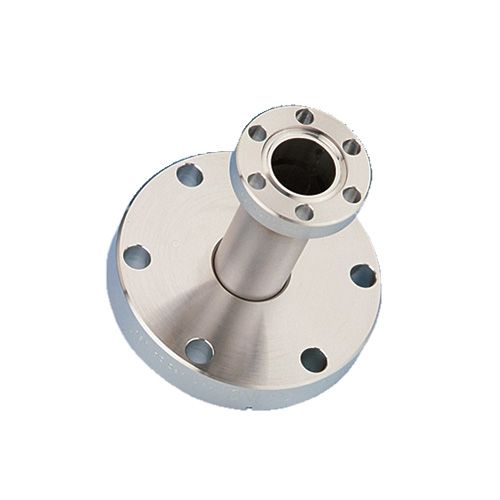

Nipple Reducer, 6.0" OD x 4.5" OD CF Flanges, Rotatable, 304ss
Part Number / SKU
402015
$416.00
Availability:
6 Weeks
Nipple Reducer, 6"x2.5", Rotatable
More Information
Specifications
| Weight (lb) | 7.00 |
| Length | 2.5" (2-1/2 Inches) | 63.5mm |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Reference Number | F600250-1R |
| Vacuum Series | Ultra High Vacuum (UHV) |
| Wall Thickness | 0.065" |
| Bolt Hole Type | Clearance |
| Flange Size | DN100CF 152mm | 6.00" OD |
| Flange Type | ConFlat CF Flange |
| Reducer Flange | 4.50 Inch OD (DN63) |
| Tube Outer Diameter | 2.5" (2-1/2 Inches) |
