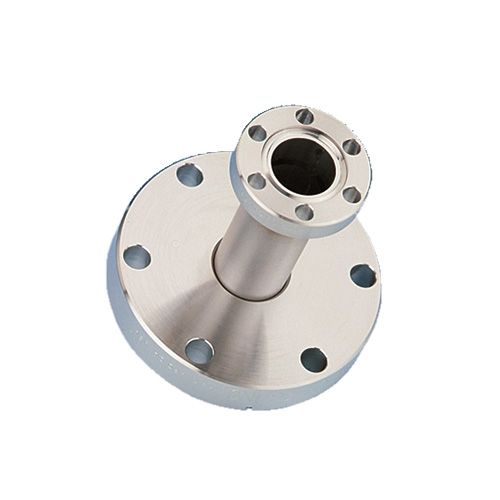

402012, Nipple Reducer, Straight Tube, 3.38" OD x 2.75" OD CF Flanges, Rotatable, 304ss

Part Number / SKU
402012
$123.90
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Reducers are used for a change in size of flanges within a single method of sealing, such as ConFlat CF to CF. Nipple reducers include a section of tubing between flanges.

  • For ConFlat to ConFlat connections of different size flanges
  • Larger flange is non-rotatable, smaller flange is rotatable
  • Clearance bolt holes
  • Standard matte finish

More Information

Specifications

Specifications
Weight (lb) 2.50
Length 2.50" (2-1/2 Inches) | 63.5mm
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Reference Number F338150-1R
Temperature Range -200°C to 450°C
Vacuum Series Ultra High Vacuum (UHV)
Wall Thickness 0.065"
Bolt Hole Type Clearance
Flange Size DN50CF 86mm | 3.375" (3 3/8") OD
Flange Type ConFlat CF Flange
Reducer Flange 2.75 Inch OD (DN40)
Tube Outer Diameter 1.5" (1-1/2 Inches)
