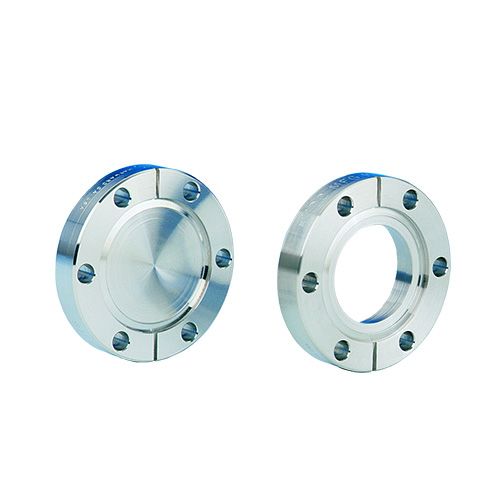

Flange, 2.75" x 1", Tapped, 304ss

$45.00
In stock
SKU
130012

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

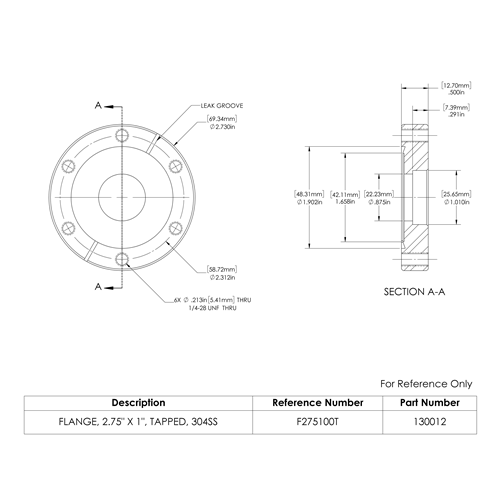

130012_sc.dwg

130012_sc.dxf

130012_fr.dwg

130012_fr.dxf

130012.stp

More Information

More Information
Material 304 Stainless Steel (SS)
Number of Holes 6
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size 2.75 Inch OD (DN40)
Flange Type Del-Seal CF
Flange, 2.75" x 1", Tapped, 304ss
