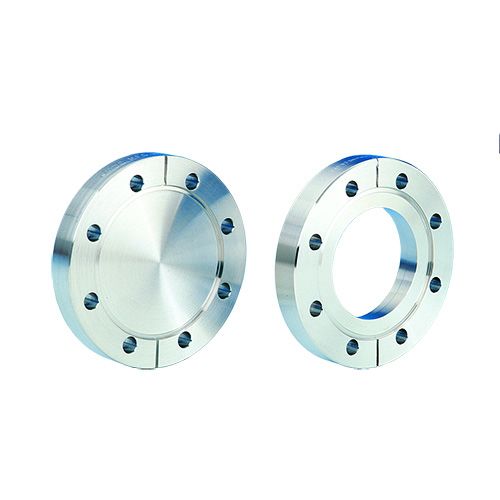

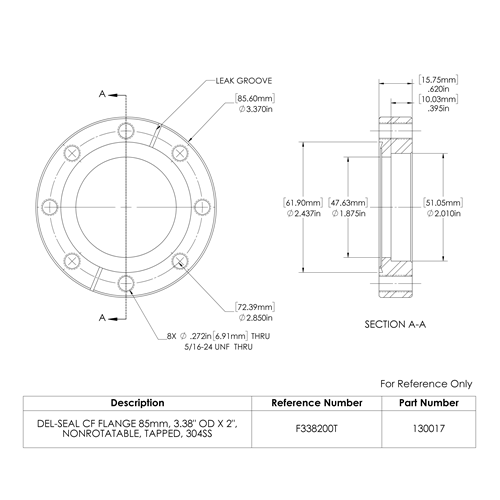

130017, Del-Seal CF Flange 85mm, 3.38" OD x 2", Nonrotatable, Tapped, 304ss
Part Number / SKU
130017
$52.50
Availability:
In Stock
Flange, 3.38" x 2", Tapped, 304ss
More Information
Specifications
| Weight (lb) | 0.50 |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 8 |
| Thread Size | 0.312-24 UNF |
| Bolt Hole Type | Tapped |
| Flange Geometry | Non-Rotatable |
| Flange Size | DN50CF 86mm | 3.375" (3 3/8") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 50.8mm | 2 inch ID Nominal (2.010") |
