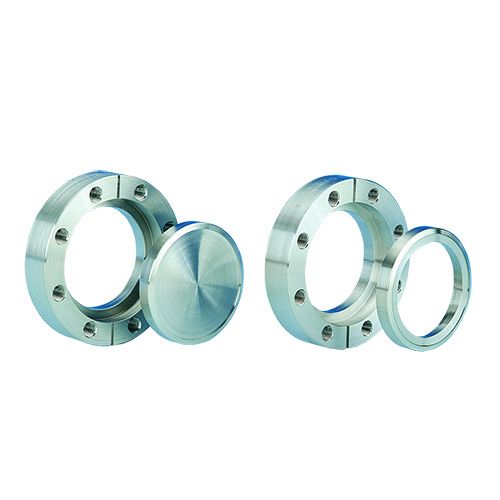

Flange, 3.38" x 2", Rotatable, Tapped, 304ss

Part Number / SKU
120017
$56.70
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
1 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 3.38" x 2", Rotatable, Tapped, 304ss

More Information

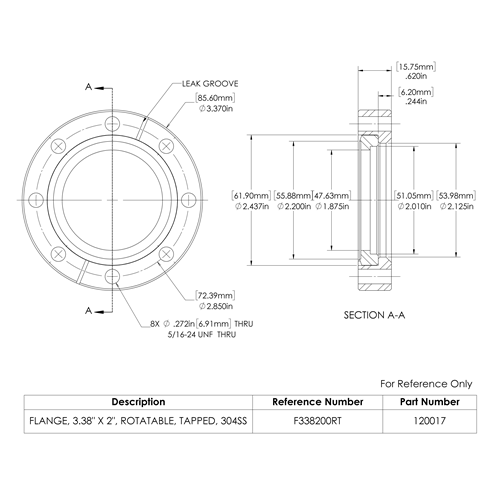

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 50.8mm | 2 inch ID Nominal (2.010")
