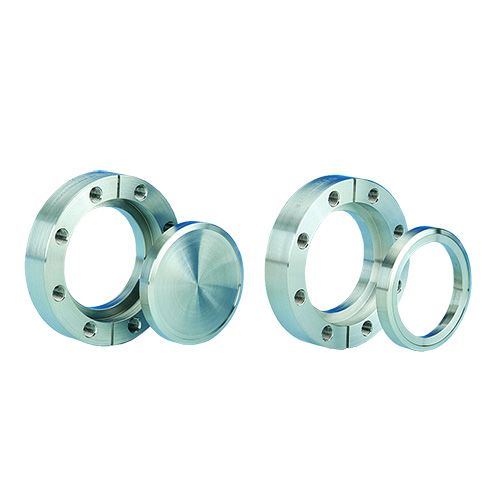

Flange, 3.38" x 2", Rotatable, 304ss

Part Number / SKU
100017
$47.25
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
1 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

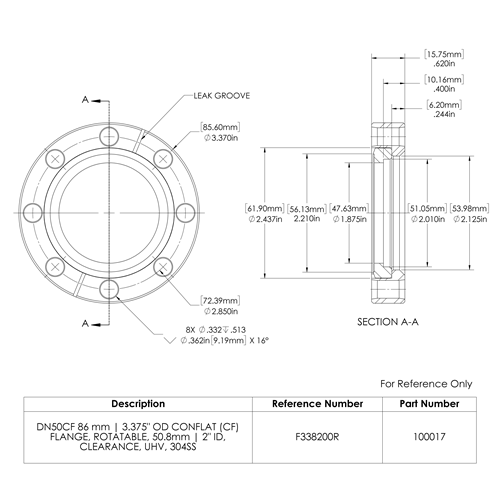

100017_sc.dxf

100017_sc.dwg

100017_fr.dxf

100017_fr.dwg

100017.stp

Flange, 3.38" x 2", Rotatable, 304ss
100017.stp (117.17 kB)
100017_fr_dwg (5.83 kB)
100017_sc_dxf (3.10 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 50.8mm | 2 inch ID Nominal (2.010")
