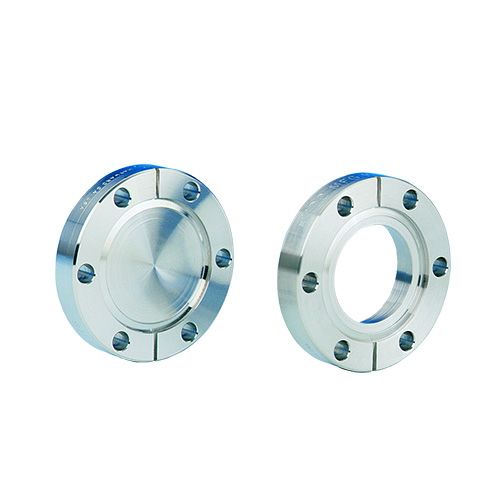

Flange, 2.75" x 1.75", Tapped, 304ss

SKU
130094
$25.20
Availability: In Stock
Quantity:
86 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

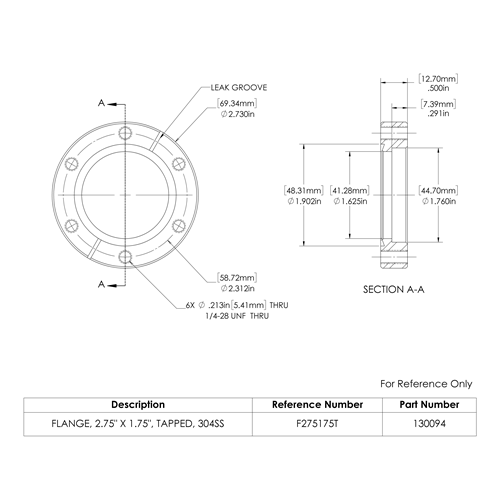

Flange, 2.75" x 1.75", Tapped, 304ss
130094_fr_dxf (2.20 kB)
130094_sc_dwg (4.62 kB)
130094_fr_dwg (4.00 kB)
130094_sc_dxf (2.83 kB)
130094.stp (104.03 kB)

More Information

Specifications

Specifications
Weight 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Thread Size 0.250-28 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN40CF 70mm | 2.75" (2 3/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-3/4 Inch Nominal (1.625)
