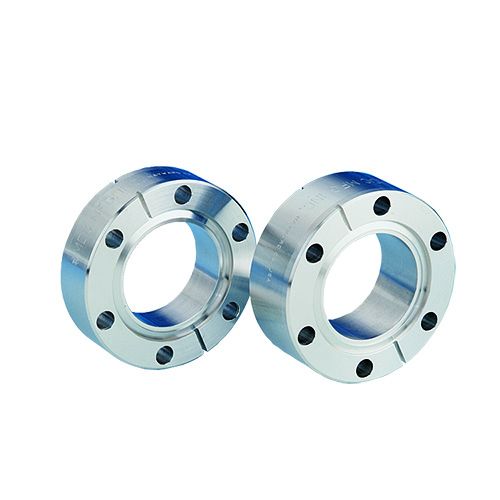

Double Sided Flange, 8", Blank

Part Number / SKU
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

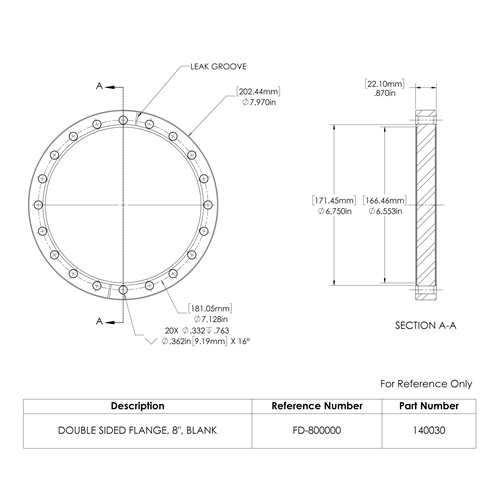

Double Sided Flange, 8", Blank
140030.stp (211.60 kB)
140030_FR_dwg (4.40 kB)
140030_sc_dxf (4.16 kB)
140030_fr_dxf (2.53 kB)
140030_SC_dwg (6.70 kB)

More Information


Weight (lb) 12.000000
Bolt Circle Diameter 7.128 inch
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 20
Bolt Hole Type Clearance
Flange Size DN160CF 203mm | 8.00" OD
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
