Double Sided Flange, 10", Blank (CF 200, 254mm)

Part Number / SKU
140032
$330.75
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

140032.SLDPRT Download

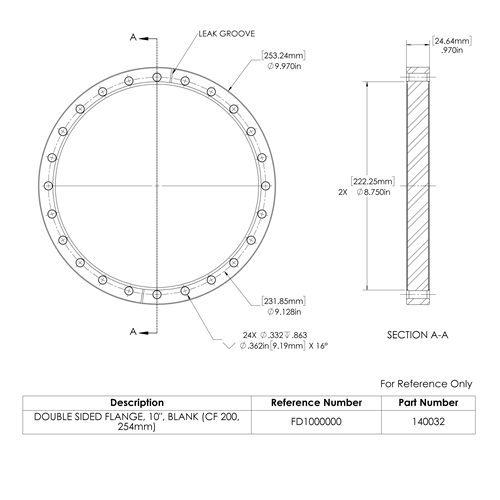

140032_A.PNG Download
140032_A.DWG Download
140032_A.STEP Download
140032.SLDDRW Download
140032_A.pdf Download
140032_TechnicalSpecs.rtf Download
Double Sided Flange, 10", Blank

More Information

Specifications

Specifications
Weight (lb) 20.00
Bolt Circle Diameter 9.128 inch
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 24
Bolt Hole Type Clearance
Flange Size DN200CF 254mm | 10.00" OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) Blank
