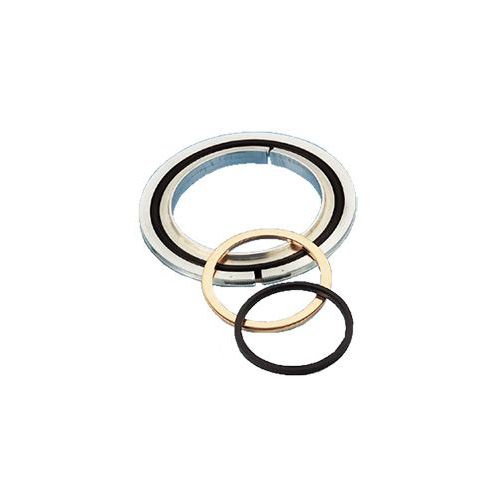

810008, Centering Ring, NW80, ISO LF, Large-Flange, FKM Elastomer, 304ss, (1 Per Pack) Include one elastomer gasket seal
Part Number / SKU
810008
$37.80
Availability:
Backordered
Quantity:
0 Available
Standard Lead Time:
6 weeks
Features
- Standard ring mates ISO LF Large-Flange of equal size
- Fast connect and disconnect
- Economical reusable fittings
- Includes elastomer gasket
- Stainless steel or aluminum construction
- Vacuum rated to 1x10-8 Torr
Specifications
Material
- Ring: 304ss or Aluminum
- Gaskets: Elastomer Gasket
Vacuum Range
- Vacuum rated to 1x10-8 Torr or 1x10-8 mbar
Temperature Range
- Maximum bakeout 200°C
- Sustained use to 150°C
Weight
- 0.4lb to 1lb or 0.2kg to 0.5kg maximum
More Information
Specifications
Weight (lb) | 0.500000 |
Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
Vacuum Series | High Vacuum (HV) |
Flange Size | NW80 |
Flange Type | ISO LF Large-Flange |
