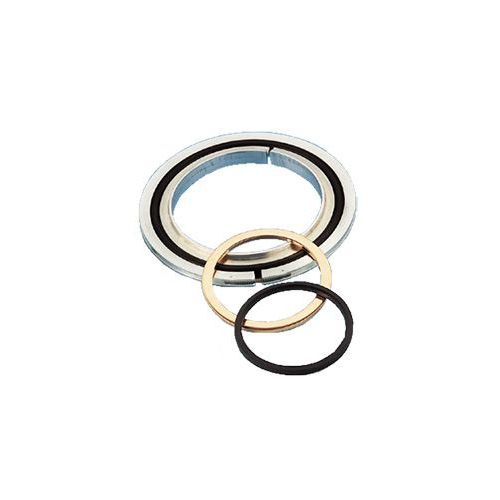

810003, Aluminum Centering Ring, DN200LF NW200 ISO LF Large-Flange, FKM O-Ring

Part Number / SKU
810003
$68.25
Availability: In Stock
Quantity:
37 Available
Lead Time:
8 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Standard ring mates ISO LF Large-Flange of equal size
  • Fast connect and disconnect
  • Economical reusable fittings
  • Includes FKM gasket and spacer ring

Specifications

Dimensions

  • Internal Diameter (ID)
    • Centering Ring                                                  8.23" (2.61 inches)   | 209.0mm
    • O-Ring                                                                8.48" (2.85 inches)    | 215.4mm
  • Centering Ring Locator Outside Diameter (OD)    8.35" (8.35 inches)     | 213mm nominal
  • Spacer Ring Thickness                                               0.158" (0.158 inches) | 4.0mm
  • Tube Size                                                                      8.00" (8 inches)           | 203.2mm

Materials                                       

  • Centering Ring                                                              Aluminum
  • Gasket                                                                          Fluorocarbon-based fluroelastomer (FKM / FPM)

Vacuum Range                

  • 1x10-8 Torr | 1x10-8 mbar

Temperature Range           

  • Maximum bakeout 200°C
  • Sustained use to 150°C

Weight                    

  • 1lb (1 pound) | 0.5kg

Reference Number

  •  L800-CRB | L200-CR

More Information

Specifications

Specifications
Weight (lb) 1.000000
Material 6061-T6 Aluminum
Vacuum Series High Vacuum Series
