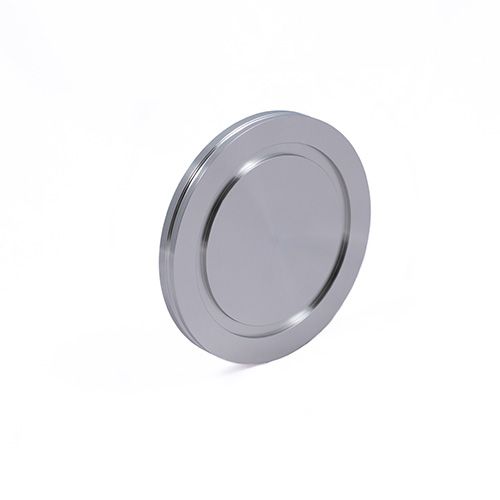

ISO-LF Large-Flange, NW100, Blank, Claw-Clamp

Part Number / SKU
812001
$84.00
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

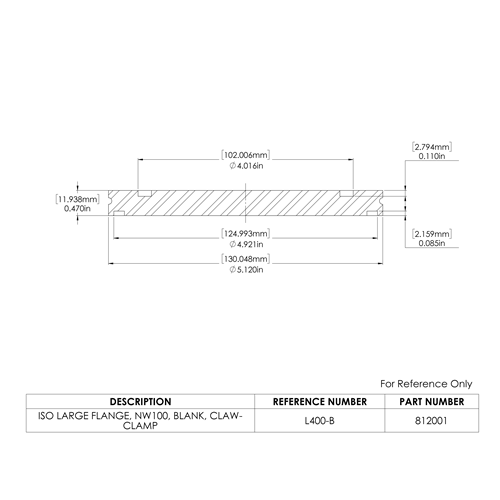

812001_B.PNG Download
812001_TechnicalSpecs.rtf Download
812001_B.STEP Download
812001.SLDDRW Download
812001_B.DWG Download
812001.SLDPRT Download
812001_B.PDF Download
ISO-KF Flange, NW100, Blank, Claw-Clamp
812001.stp (44.23 kB)

More Information

Specifications

Specifications
Weight (lb) 1.00
Fastening Method Claw-Clamp
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Flange Size NW100
Flange Type ISO LF Large-Flange
