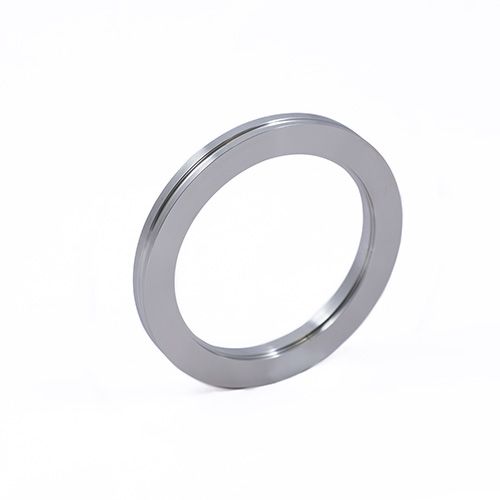

ISO-LF Large-Flange, NW100, 4"Clamped, Claw-Clamp

Part Number / SKU
813001
$77.70 Special Price $69.93
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

813001_TechnicalSpecs.rtf Download
813001_F.DWG Download

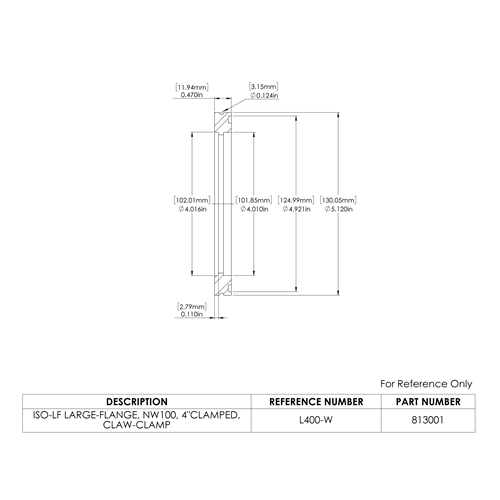

813001_F.PNG Download
813001.SLDDRW Download
813001.SLDPRT Download
813001_F.PDF Download
813001_F.STEP Download
ISO-KF Flange, NW100, 4"Clamped, Claw-Clamp
813001.stp (49.48 kB)

More Information

Specifications

Specifications
Weight (lb) 0.50
Fastening Method Claw-Clamp
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Flange Size NW100
Flange Type ISO LF Large-Flange
