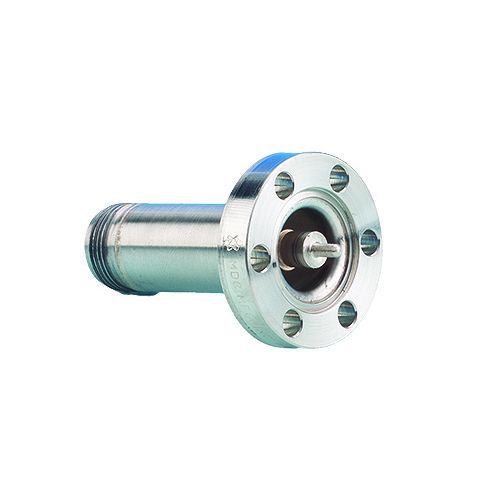

9242000, TYPE-N Coaxial Feedthrough, 1-Pin, Grounded Shield, 1.33" CF (DN16CF) Conflat Flange

Part Number / SKU
Availability: In Stock
1 Available
Standard Lead Time:
4 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

TYPE-N Coaxial Feedthrough, 1 Pin, Gounded Shield, 1.33" Conflat Flange

More Information


Weight (lb) 1.500000
Vacuum Series Ultra High Vacuum (UHV)
Voltage 500
Conductor Material Nickel
Connector Type Coaxial Type-N
Current 3
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Number of Pins 1
Mounting Style Conflat Flange (CF)
