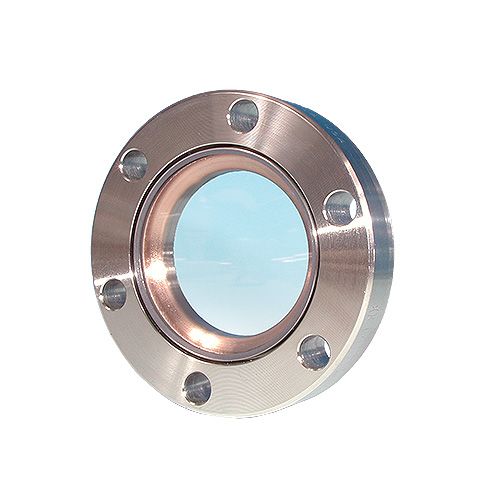

9722007, UV Grade Fused Silica Viewport, 2.50" Lens, 4.50" Conflat Flange (63.5mm Lens, DN63 CF)

$658.00
In stock
SKU
9722007

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Specifications

Transmission Range

Base Ultraviolet (UV)                         .200 to 2.00µm

Deep Ultraviolet (DUV-200)               .200 to 2.00µm

Excimer Ultraviolet (EUV-185)          .185 to 2.20 µm

Infrared, Low OH (upon request)      .180 to 3.60 µm

Temperature Rating

Weldable & Conflat (CF)                     to 200°C

ISO & Kwik-flange (KF)                       to 150°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

9722007.STEP

More Information

More Information
Weight 3.000000
UV Grade Fused Silica Viewport, 2.50" Lens, 4.50" Conflat Flange
