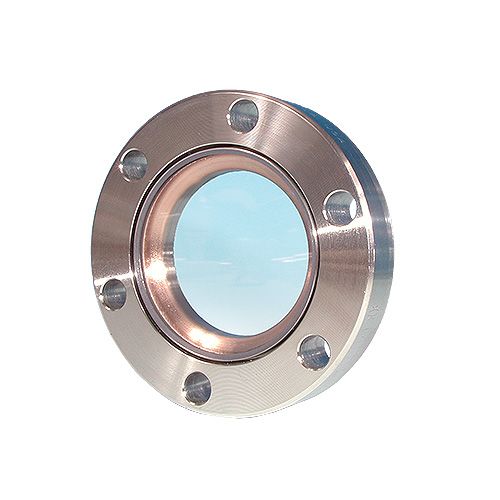

9722011, UV Grade Fused Silica Viewport, 6.00" Lens, 8.00" Conflat Flange (152.4mm Lens, DN160 CF)

Specifications

Transmission Range

Base Ultraviolet (UV)                         .200 to 2.00µm

Deep Ultraviolet (DUV-200)               .200 to 2.00µm

Excimer Ultraviolet (EUV-185)          .185 to 2.20 µm

Infrared, Low OH (upon request)      .180 to 3.60 µm

Temperature Rating

Weldable & Conflat (CF)                     to 200°C

ISO & Kwik-flange (KF)                       to 150°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

9722011.STEP
