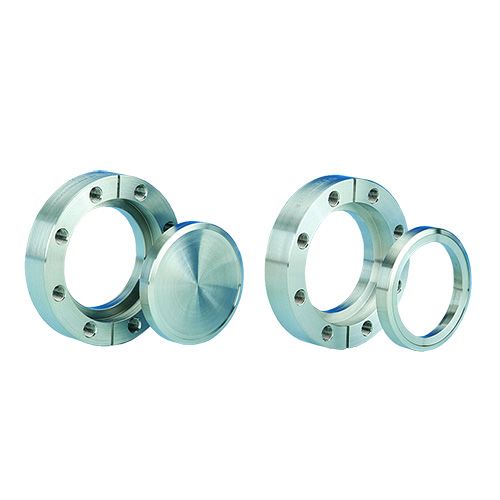

Flange, 3.38" x 1.5", Rotatable, 304ss

Part Number / SKU
100016
$78.75
Availability: In Stock
Quantity:
1 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100016_sc.dxf

100016.stp

100016_fr.dwg

100016_sc.dwg

100016_fr.dxf

Flange, 3.38" x 1.5", Rotatable, 304ss
100016.stp (117.17 kB)
100016_fr_dwg (5.85 kB)
100016_sc_dxf (2.90 kB)
100016_fr_dxf (2.27 kB)
100016_sc_dwg (6.72 kB)

More Information

Specifications

Specifications
Weight (lb) 1.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-1/2 Inch Nominal (1.375)
