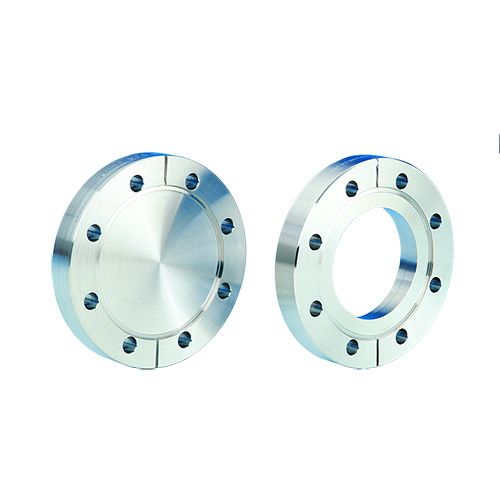

Flange, 3.38" x 1.5" (85.852mm x 38.1mm), 304ss

SKU
110016
$43.05
Availability: In Stock
Quantity:
13 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

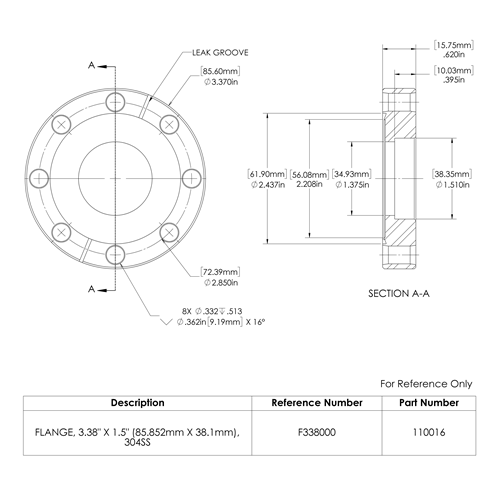

Flange, 3.38" x 1.5", 304ss
110016_sc_dxf (2.95 kB)
110016.stp (102.60 kB)
110016_FR_dwg (4.05 kB)
110016_fr_dxf (2.24 kB)
110016_SC_dwg (4.76 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-1/2 Inch Nominal (1.375)
