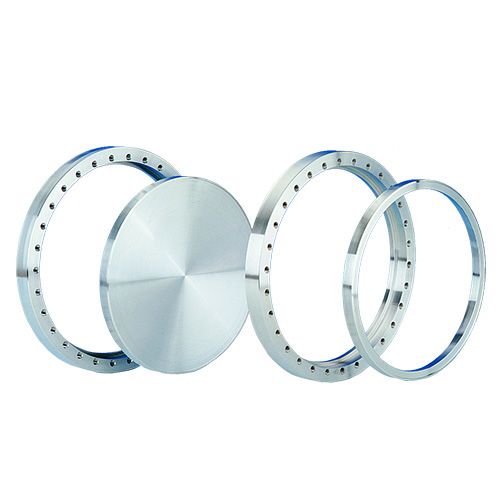

Flange, 13.25" Blank, Rotatable, 304ss

Part Number / SKU
100034
$1,013.25
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100034.stp

100034_sc.dwg

100034_fr.dwg

100034_sc.dxf

100034_fr.dxf

Flange, 13.25" Blank, Rotatable, 304ss
100034_fr_dxf (2.77 kB)
100034_sc_dwg (6.82 kB)
100034_fr_dwg (6.68 kB)
100034_sc_dxf (3.08 kB)
100034.stp (283.08 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN275CF 336mm | 13.25" (13 1/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
