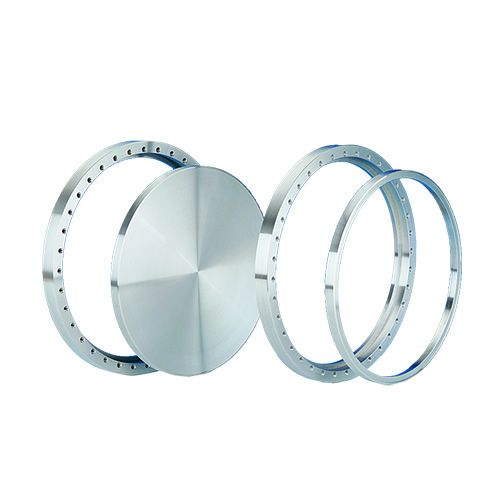

Flange, 16.5", Blank, Rotatable, 304ss

Part Number / SKU
100039
$1,491.00
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100039.stp

100039_sc.dwg

100039_fr.dwg

100039_sc.dxf

100039_fr.dxf

Flange, 16.5", Blank, Rotatable, 304ss
100039.stp (328.35 kB)
100039_fr_dxf (2.91 kB)
100039_sc_dwg (6.79 kB)
100039_sc_dxf (3.07 kB)
100039_fr_dwg (6.79 kB)

More Information

Specifications

Specifications
Weight (lb) 64.000000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 36
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN350CF 419mm | 16.50" (16 1/2") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) Blank
