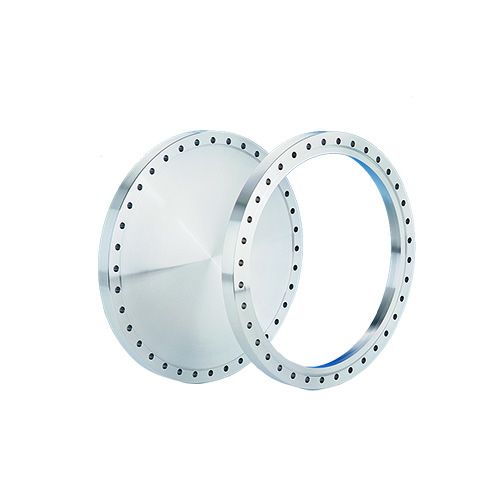

Flange, 16.5" (419.1mm), Blank, 304ss

SKU
110039
$1,416.45
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

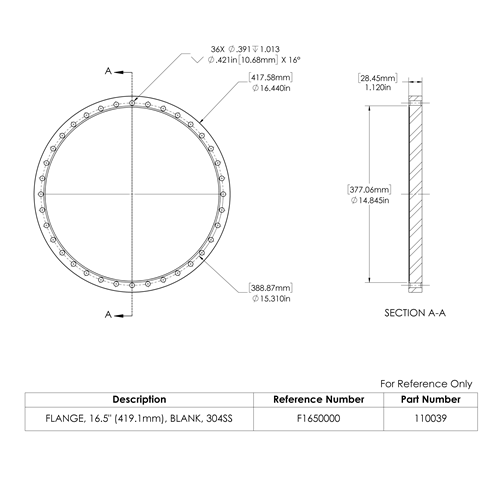

Flange, 16.5", Blank, 304ss
110039.stp (313.58 kB)
110039_fr_dxf (2.86 kB)
110039_SC_dwg (5.95 kB)
110039_FR_dwg (4.76 kB)
110039_sc_dxf (3.71 kB)

More Information

Specifications

Specifications
Weight 64.000000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 36
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN350CF 419mm | 16.50" (16 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
