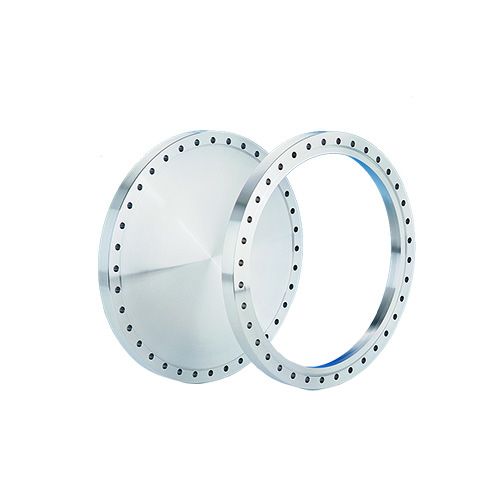

Flange, 16.5"x14" (419.1mm x 355.6mm), 304ss

SKU
110040
$1,494.15
Availability: In Stock
Quantity:
6 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 16.5"x14", 304ss
110040_SC_dwg (4.85 kB)
110040_fr_dxf (2.90 kB)
110040.stp (322.02 kB)
110040_FR_dwg (4.81 kB)
110040_sc_dxf (2.85 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 36
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN350CF 419mm | 16.50" (16 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 14 Inch Nominal (13.750)
