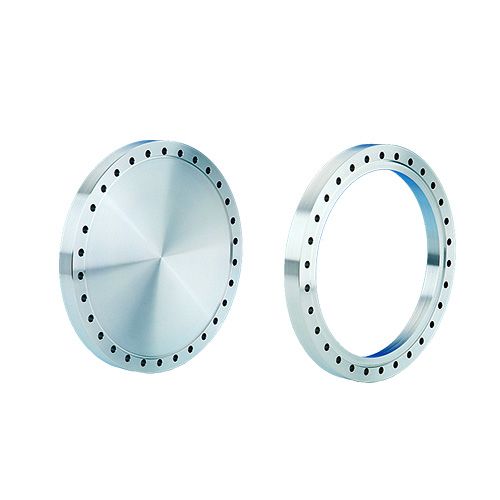

Flange, 13.25" (336.55mm), Blank, 304ss

SKU
110034
$663.60
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 13.25", Blank, 304ss

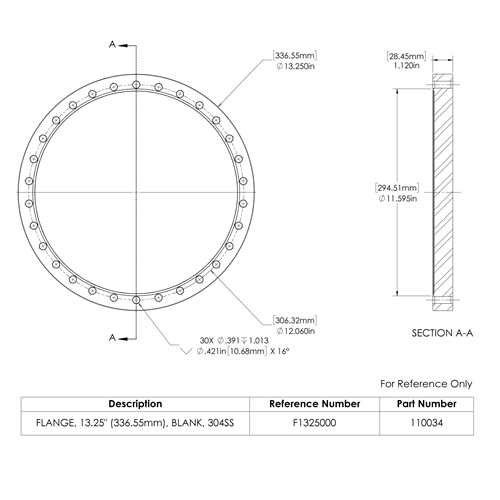

110034_SC_dwg (5.63 kB)
110034_fr_dxf (2.73 kB)
110034.stp (267.94 kB)
110034_FR_dwg (4.64 kB)
110034_sc_dxf (3.47 kB)

More Information

Specifications

Specifications
Weight 41.000000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN275CF 336mm | 13.25" (13 1/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
