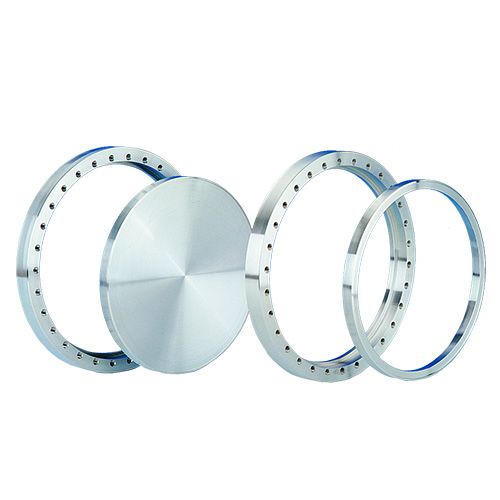

Flange, 12", Blank, Rotatable, 304ss

Part Number / SKU
100058
$1,036.35
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100058.stp

100058_sc.dwg

100058_fr.dwg

100058_sc.dxf

100058_fr.dxf

Flange, 12", Blank, Rotatable, 304ss
100058_fr_dwg (6.70 kB)
100058.stp (298.87 kB)
100058_sc_dwg (6.65 kB)
100058_sc_dxf (2.98 kB)
100058_fr_dxf (2.84 kB)
100058.stp (480.95 kB)

More Information

Specifications

Specifications
Weight (lb) 33.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 32
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN250CF 304mm | 12.00"
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
